Best Paint Sprayers for Interior Walls (2026)

What to look for

Interior walls are a large, flat, indoor job: gallons of paint, and floors, trim and windows within reach of every pass. The specs that matter follow from that:

• Paint supply. The four bucket-fed airless picks pull paint through a suction tube from a 1 or 5 gallon container, so you spray until the bucket is empty. The Control Pro 130 holds 1.5 gal in its tank, and the FLEXiO 5000 sprays from a cup.
• Overspray. Overspray is paint that drifts off as mist instead of landing on the wall. Wagner publishes a figure for its High Efficiency Airless (HEA) tips, up to 55% less than standard airless sprayers; Graco says its SoftSpray tips give less overspray but publishes no figure. Either way, cover floors and mask trim and windows before you spray.

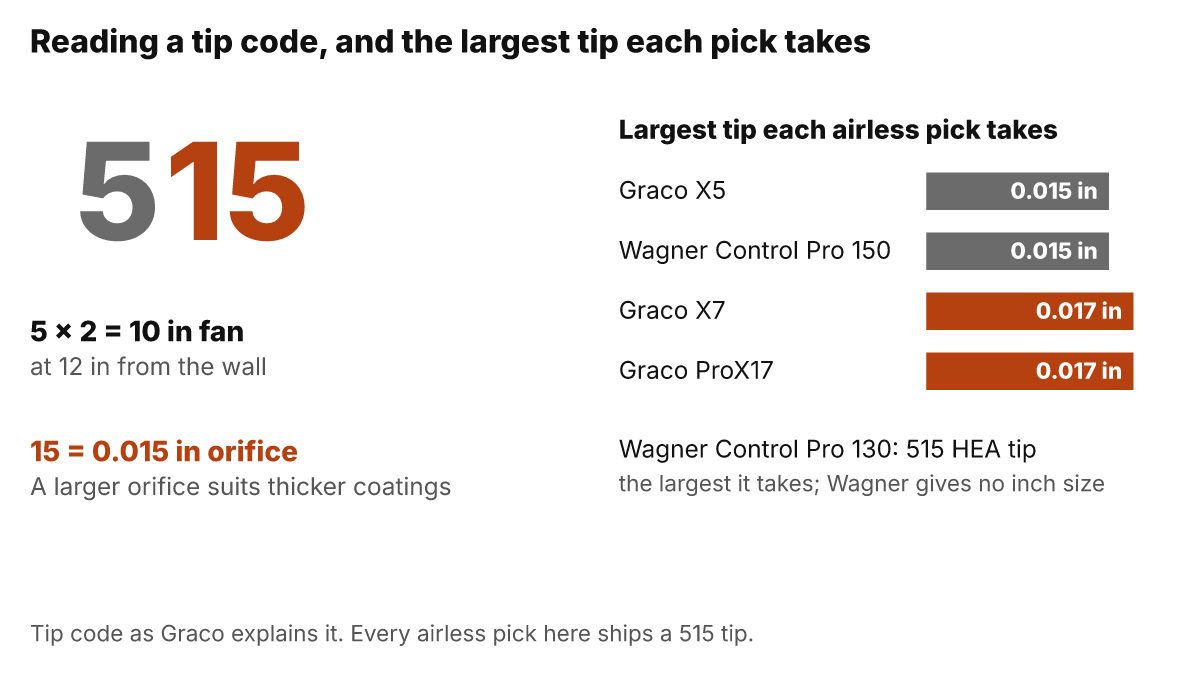

• Maximum tip size. In Graco's tip code the first digit doubled is the fan width in inches at 12 in from the surface, and the last two digits are the orifice in thousandths of an inch. Every airless pick ships a 515 tip, which Wagner lists for water- and oil-based paints and primers. Graco says larger orifices suit thicker materials: the X7 and ProX17 take tips up to 0.017 in, the X5 and Control Pro 150 up to 0.015 in.
• Maximum flow. The most paint the pump can deliver, from 0.27 gal per minute (X5) to 0.34 (ProX17). It is a pump rating, not a working rate, so it says little about how long a room takes.
• Hose length. A longer hose lets the pump stay in one place while you work from room to room. The X5 comes with 25 ft and supports up to 75 ft, the X7 up to 100 ft, and the ProX17 comes with 50 ft and supports up to 150 ft. Both Control Pros come with 25 ft.
• Recommended annual use. Graco and Wagner state the gallons a year each sprayer is designed for: 125 for the X5 and X7, 175 for the Control Pro 150 and 300 for the ProX17.

In the comparison table, the FLEXiO 5000 reads “Not published” for maximum tip, maximum flow and recommended use: those are airless pump ratings, and Wagner gives no equivalent for this HVLP cup sprayer.

How much paint, and how often you refill

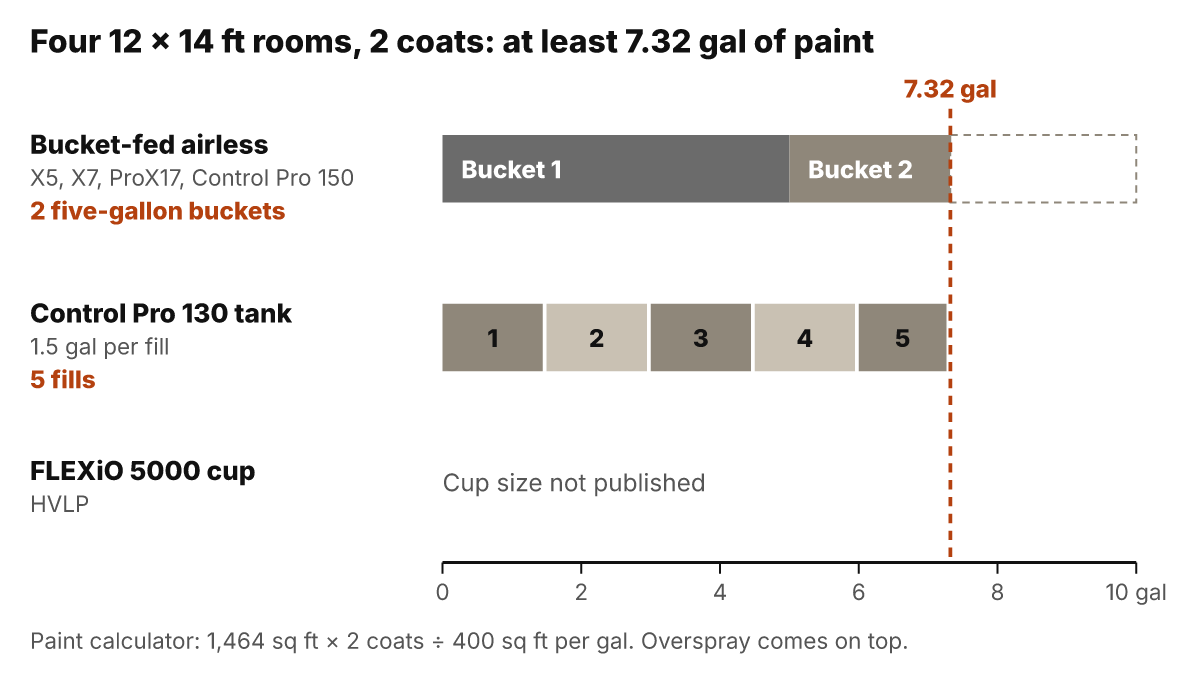

Work out the paint before you choose the sprayer. The paint calculator's default example is the four walls of a 12 × 14 ft room, 52 ft of wall 8 ft high, less 50 sq ft of doors and windows, with 2 coats at 400 sq ft per gallon. That coverage is the low end of the spread rate Benjamin Moore publishes for Regal Select Eggshell (N549), used here only as an example; use the figure on your own paint's label.

One room    = 52 ft × 8 ft − 50 sq ft = 366 sq ft
Paint       = 366 × 2 coats ÷ 400 = 1.83 gal → 2 one-gallon cans
Four rooms  = 1,464 sq ft × 2 ÷ 400 = 7.32 gal → 2 five-gallon buckets
Tank fills  = 7.32 ÷ 1.5 gal = 4.88 → 5 fills (one room: 2)

Containers rounded up the way the paint calculator rounds them, so you never buy less than the job needs.

Treat these as floors. The calculator's gallons are paint on the wall at the label's coverage. A sprayer also loses some paint as overspray, and some fills the pump and hose when you prime and stays there when you clean up. None of the makers here publishes how much, so buy at least the calculator's figure, rounded up to whole containers. Measure first with how to measure a room for paint and drywall, and check whether you need a primer or a third coat in how many coats of paint you need.

Airless, HEA or HVLP?

An airless sprayer pumps paint to the tip at high pressure, up to 3,000 psi for the three Graco picks, and the tip breaks it into a fan. Wagner's High Efficiency Airless runs lower, up to 1,500 psi on the Control Pro 150 and 1,600 psi on the Control Pro 130, with tips Wagner says cut overspray by up to 55%. Both kinds suit whole walls and ceilings, and both need the room masked.

An HVLP sprayer such as the FLEXiO 5000 sprays from a cup with air from a turbine. Wagner lists its iSpray nozzle for walls and ceilings and its Detail Finish nozzle for trim and cabinets, so it can do the walls and the woodwork of one room. With no published cup size or flow rate, it is the pick for an accent wall or a small room rather than a whole floor. For furniture and cabinets, the painting section of our top tool picks also lists HomeRight's cup-fed Super Finish Max.
